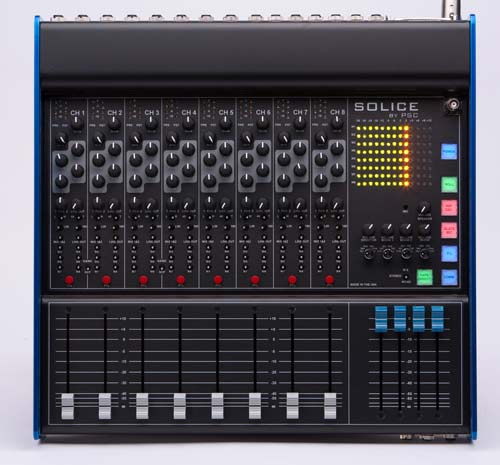

Features of the PSC Solice Audio Mixer:
Super Quiet Pre-Amps with Fully Variable Gain and Precise Limiters
Infinitely Variable High Pass Filters
8 Input Channels with Mic Power, Parametric EQ, Pre-Fade Listens
All Channel Assignments Can Be Assigned Pre-Fader or Post Fader
Individual Line Outputs on Every Input Channel, Pre or Post Fader Assignable
Individual Channel Meters for both Pre and Post Fader Signal Levels
8 Mix Busses for Extreme Versatility
8 Balanced Outputs on Full Size XLR's and also on a Multi-Pin
Sunlight Readable LED PPM Metering on all 8 Outputs
Slate Microphone
Remote Roll
Private Line - provides one way communication to 2 boom operators
Comm - provides full duplex communication to 2 boom operators
Speaker Output follows Mixer Headphone Selection for Playback Jobs
Balanced Outputs available on a Multi-Pin Connector
Operates From External 10 to 18 VDC
Built using only the finest components including, P&G faders, NKK Sealed Switches, Neutrik Connectors
Housing formed from 0.100" (2.5 mm) laser cut aircraft aluminum
Dimensions: 16.5" (42 cm) Wide, 16.25" (41 cm) Deep, 2.75" (7 cm) High
Weight: Approx. 14 Lbs
Specifications
| PSC # |
FPSCSOLICE |
| Size |
16.5" wide, 16.00" deep, 3.00" high
(42cm wide, 41cm deep, 7.6cm high) |
| Weight |
15 lbs (6.8 kg) |
| Operating Temperature |
-20F to +120F, -7C to +49C |
| External Power |
10 to 18Vdc, approx 13 to 20 watts |
| Meters |
LED, Peak Reading, Multi-Colored |
| Slate Microphone |
Electrete Condenser |
| Reference Oscillator |
1KHz |
| Frequency Response |
20Hz to 20Khz +/- 0.5dB |
| Distortion |
0.025% THD, typical |
| Signal to Noise Ratio |
130db EIN |
| Cross Talk |
>75dB @1Khz, via assignments |
| XLR Output Levels |
+4dBm at "0" Reference Level |
| XLR Output Impedance |
<25 Ohms, 600 Ohm rated |
| Tape Return Impedance |
1K Ohm |
| Channel Output Level |
+4dBm at "0" Reference Level |
| Warranty |
1 Year, Limited |
Features & Specifications subject to change.
|
